SLR: Outliers

Prof. Eric Friedlander

Sep 25, 2024

Double Application Exercise

📋 AE-07: Evaluating Models

📋 AE-08: Transformations

Computational set up

# load packages
library(tidyverse)   # for data wrangling and visualization
library(broom)       # for formatting model output
library(ggformula)   # for creating plots using formulas
library(scales)      # for pretty axis labels
library(knitr)       # for pretty tables
library(moderndive)  # for house_price dataset
library(fivethirtyeight) # for fandango dataset
library(kableExtra)  # also for pretty tables
library(patchwork)   # arrange plots

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_bw(base_size = 20))

Outliers

Types of “Unusual” Points in SLR

• Outlier: a data point that is far from the regression line
• Influential point: a data point that has a large effect on the regression fit

• How do we measure “far”?
• How do we measure “effect on the fit”?

Detecting Unusual Cases: Overview

1. Compute residuals
   • “raw”, standardized, studentized
2. Plots of residuals
   • boxplot, scatterplot, normal plot
3. Leverage
   • unusual values for the predictors

Example: Movie scores

• Data behind the FiveThirtyEight story Be Suspicious Of Online Movie Ratings, Especially Fandango’s
• In the fivethirtyeight package: fandango
• Contains every film released in 2014 and 2015 that has at least 30 fan reviews on Fandango, an IMDb score, Rotten Tomatoes critic and user ratings, and Metacritic critic and user scores

Data prep

• Rename Rotten Tomatoes columns as critics and audience
• Rename the dataset as movie_scores

movie_scores <- fandango |>
  rename(critics = rottentomatoes,
         audience = rottentomatoes_user)

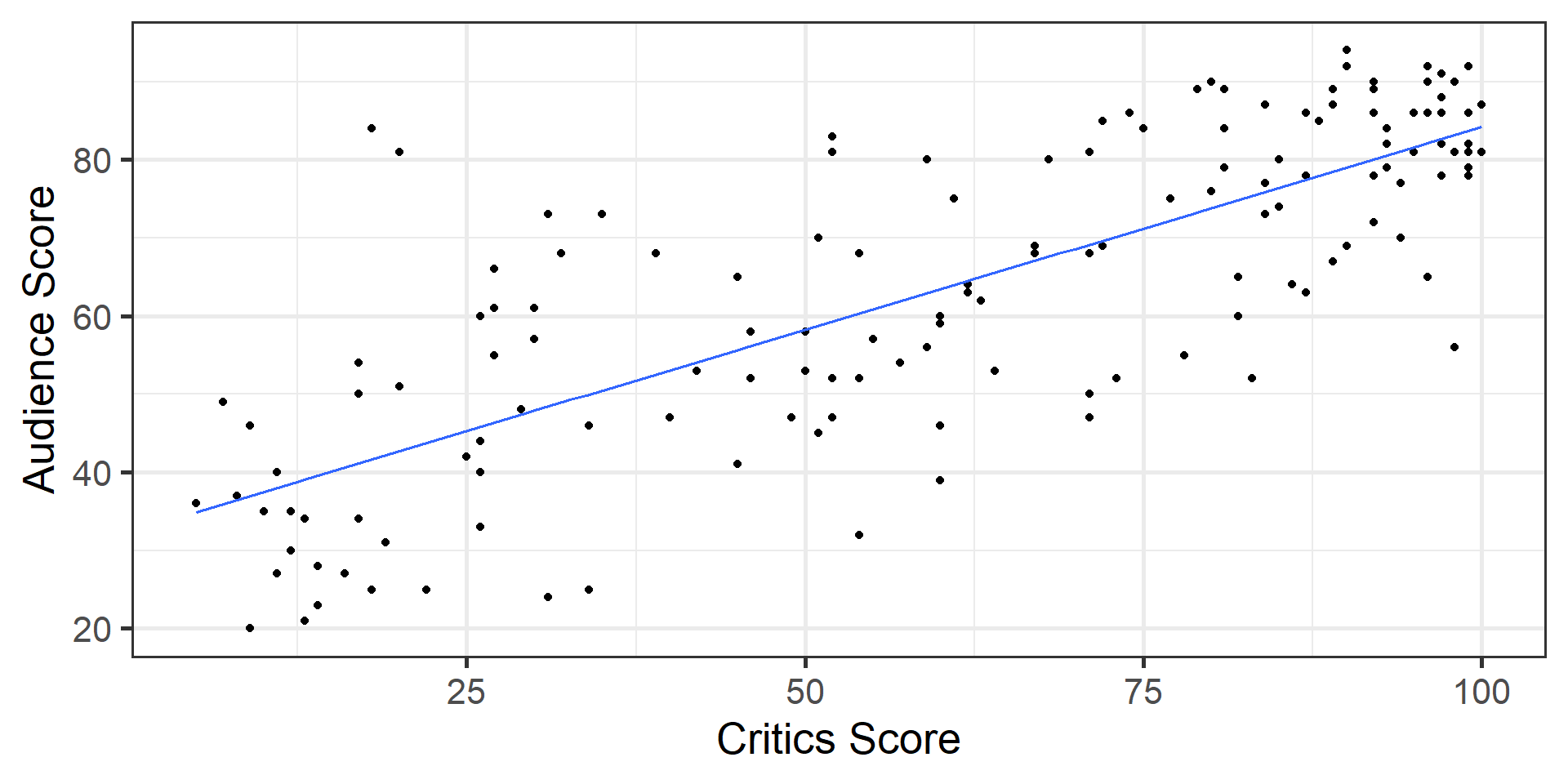

Example: Movie Scores

movie_scores |>
  gf_point(audience ~ critics) |>
  gf_lm() |>
  gf_labs(x = "Critics Score",
       y = "Audience Score")

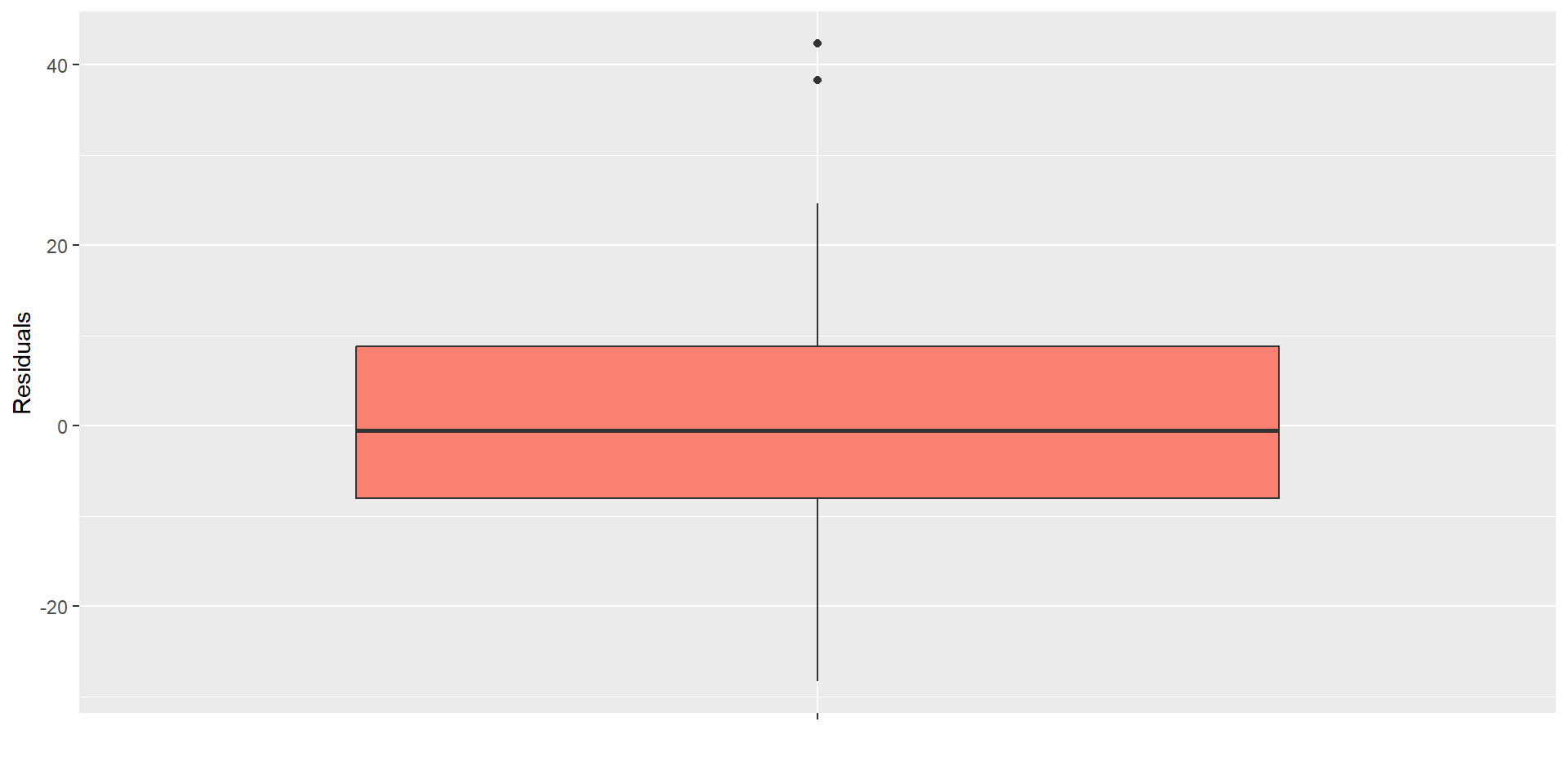

Boxplot of Residuals

movie_fit <- lm(audience ~ critics, data = movie_scores)
movie_fit_aug <- augment(movie_fit)

gf_boxplot(.resid ~ "", data = movie_fit_aug,
           fill = "salmon", ylab = "Residuals", xlab = "")

• Dots (outliers) indicate data points more than 1.5 IQRs above (or below) quartiles

Standardized Residuals

• Recall: Z-scores
• Fact: If \(X\) has mean \(\mu\) and standard deviation \(\sigma\), then \((X-\mu)/\sigma\) has mean 0 and standard deviation 1
• For residuals: mean 0 and standard deviation \(\hat{\sigma}_\epsilon\)
• Standardized residuals: \(\frac{y_i-\hat{y}_i}{\hat{\sigma}_\epsilon}\)
  • Look for values beyond \(\pm 2\) or \(\pm 3\)

Recap: Augment function

movie_fit_aug |>
  head() |>
  kable()

audience	critics	.fitted	.resid	.hat	.sigma	.cooksd	.std.resid
86	74	70.69768	15.302321	0.0081597	12.51615	0.0061774	1.2254688
80	85	76.40313	3.596866	0.0112688	12.57830	0.0004743	0.2885034
90	80	73.80975	16.190255	0.0096283	12.50817	0.0081839	1.2975389
84	18	41.65173	42.348272	0.0207618	12.06226	0.1234982	3.4131653
28	14	39.57702	-11.577018	0.0234805	12.54373	0.0104964	-0.9343768
62	63	64.99222	-2.992225	0.0068844	12.57943	0.0001988	-0.2394750

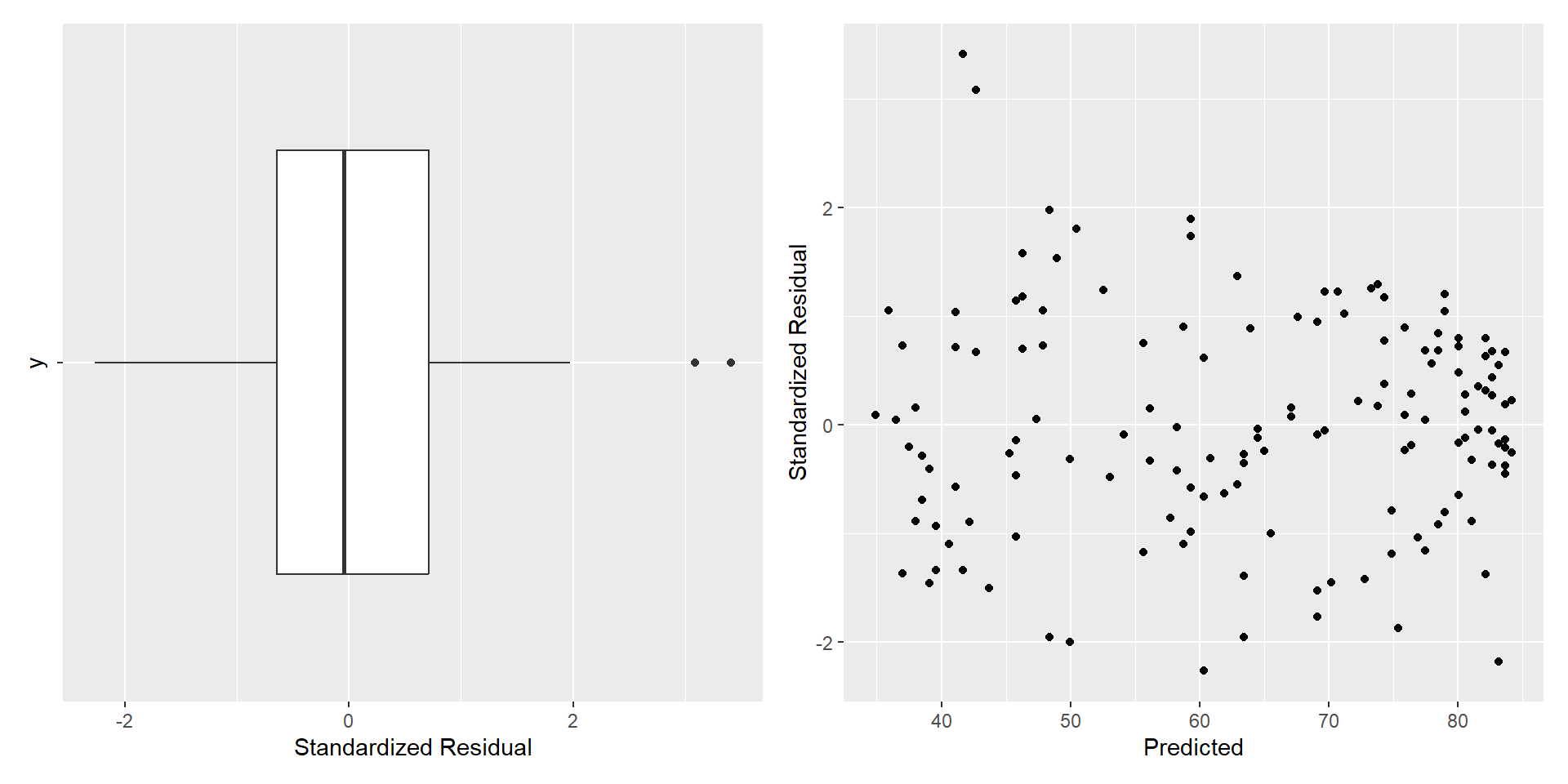

Example: Movie Scores

p1 <- movie_fit_aug |>  # Augmented data
  gf_boxplot("" ~ .std.resid,
           xlab = "Standardized Residual")

p2 <- movie_fit_aug |>  # Augmented data
  gf_point(.std.resid ~ .fitted,
           xlab = "Predicted", ylab = "Standardized Residual")

p1 + p2

(Externally) Studentized Residuals

• Concern: An unusual value may exert great influence on the fit
  • Its residual might be underestimated because the model “moves” a lot to fit it
  • The standard error may also be inflated due to the outlier error
• Studentize: Fit the model without that case, then find new \(\hat{\sigma}_\epsilon\)

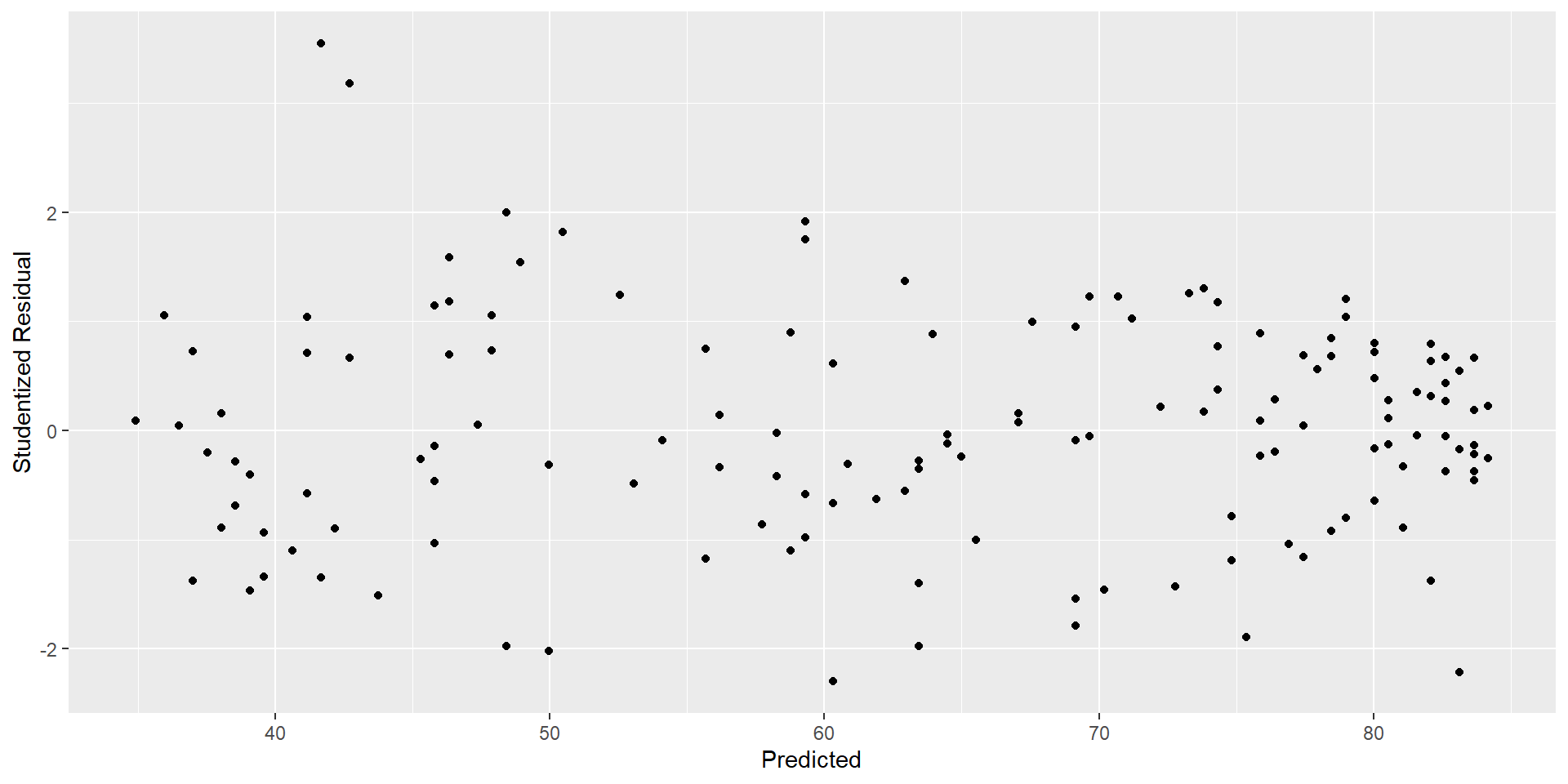

Example: Movie Scores

movie_fit_aug |>  # Augmented data
  mutate(studentized_residual = rstudent(movie_fit)) |>
  gf_point(studentized_residual ~ .fitted,
           xlab = "Predicted", ylab = "Studentized Residual")

What to do with an outlier?

• Look into it
• If something is unusual about it and you can make a case that it is not a good representation of the population you can throw it out
• If not and the value is just unusual, keep it

Influence vs. Leverage

• High Influence Point: point that DOES impact the regression line
• High Leverage Point: point with “potential” to impact regression line because \(X\)-value is unusual

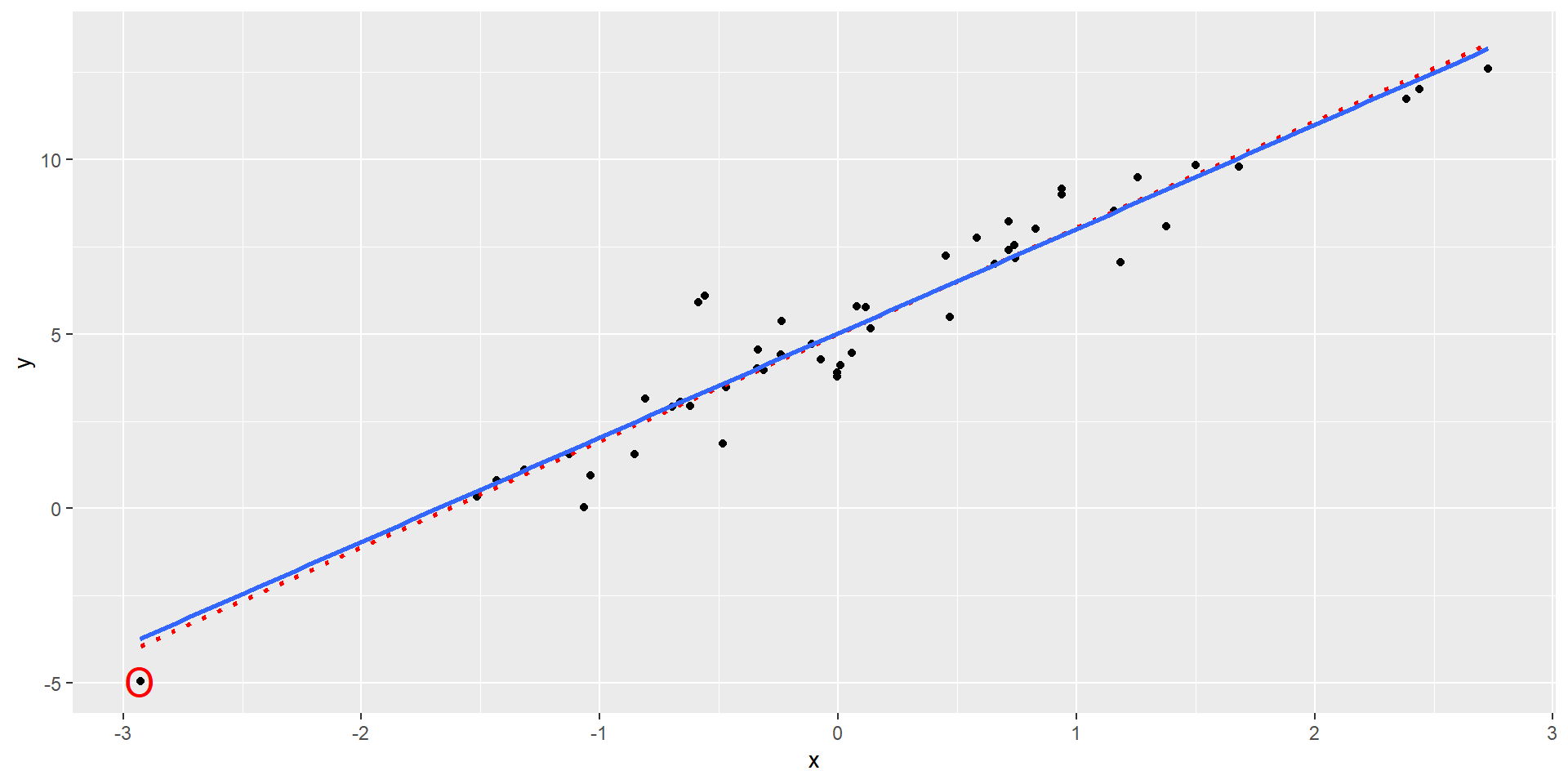

High Leverage, Low Influence

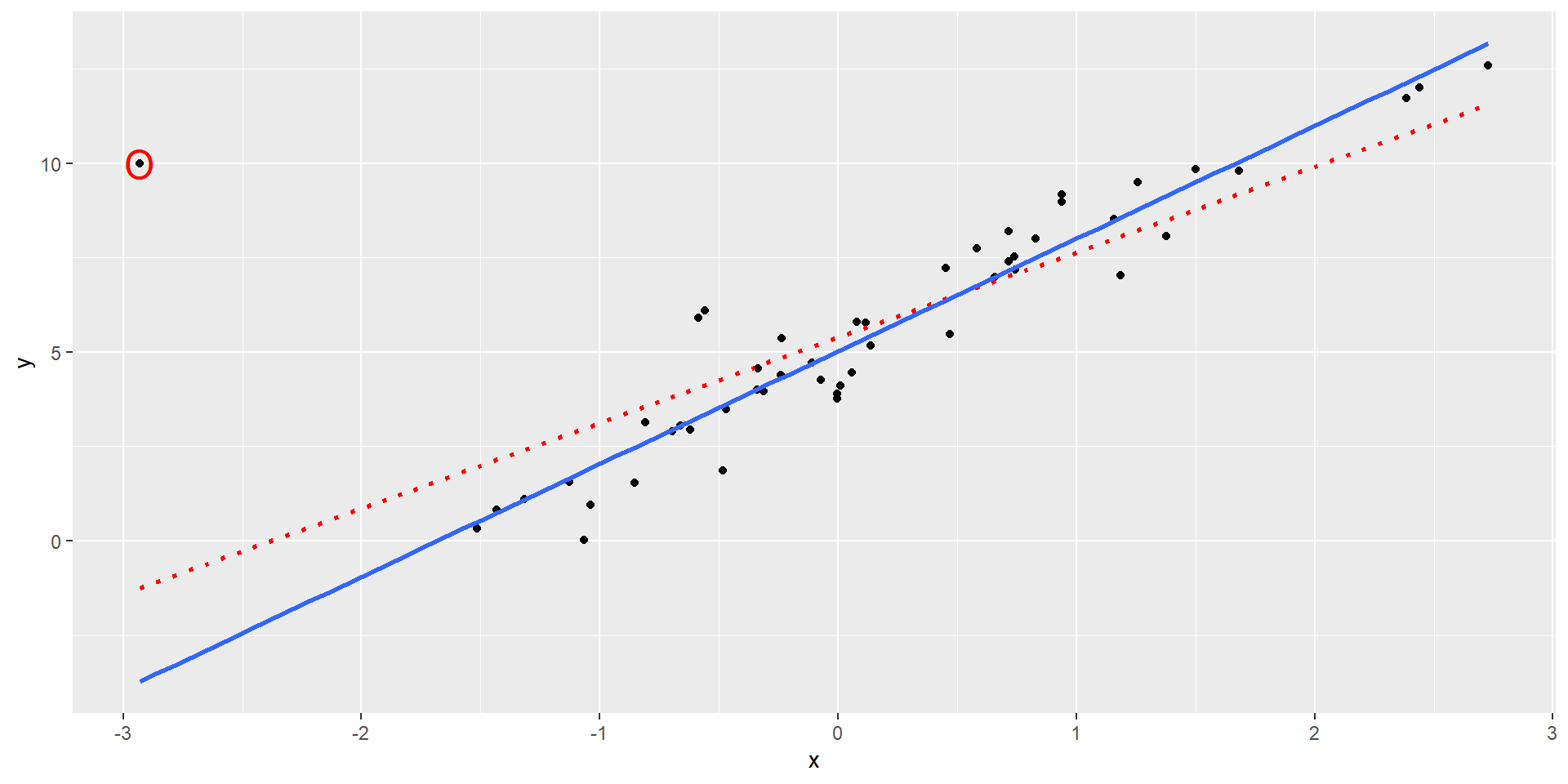

High Leverage, High Influence

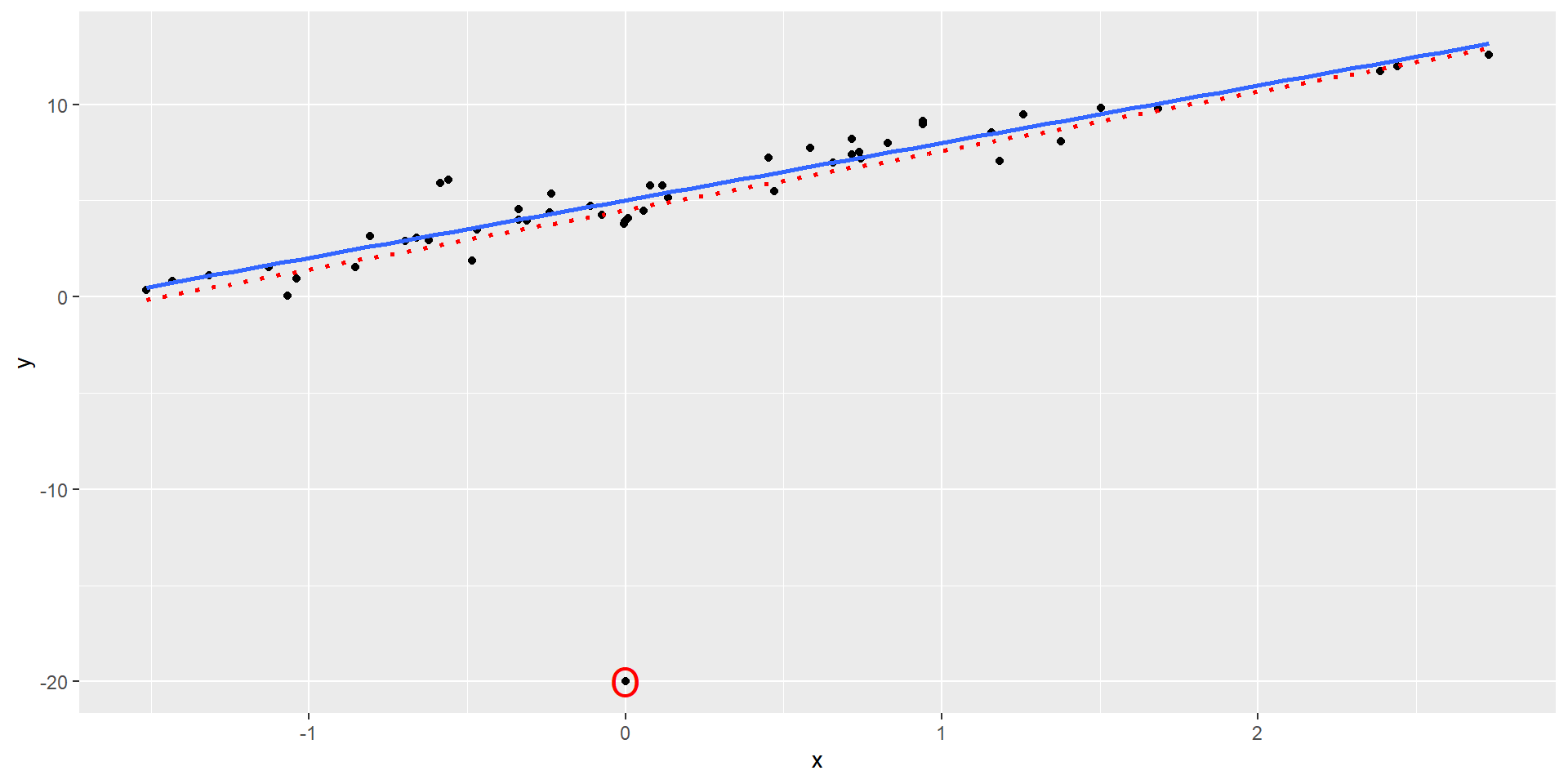

Low Leverage, Low Influence

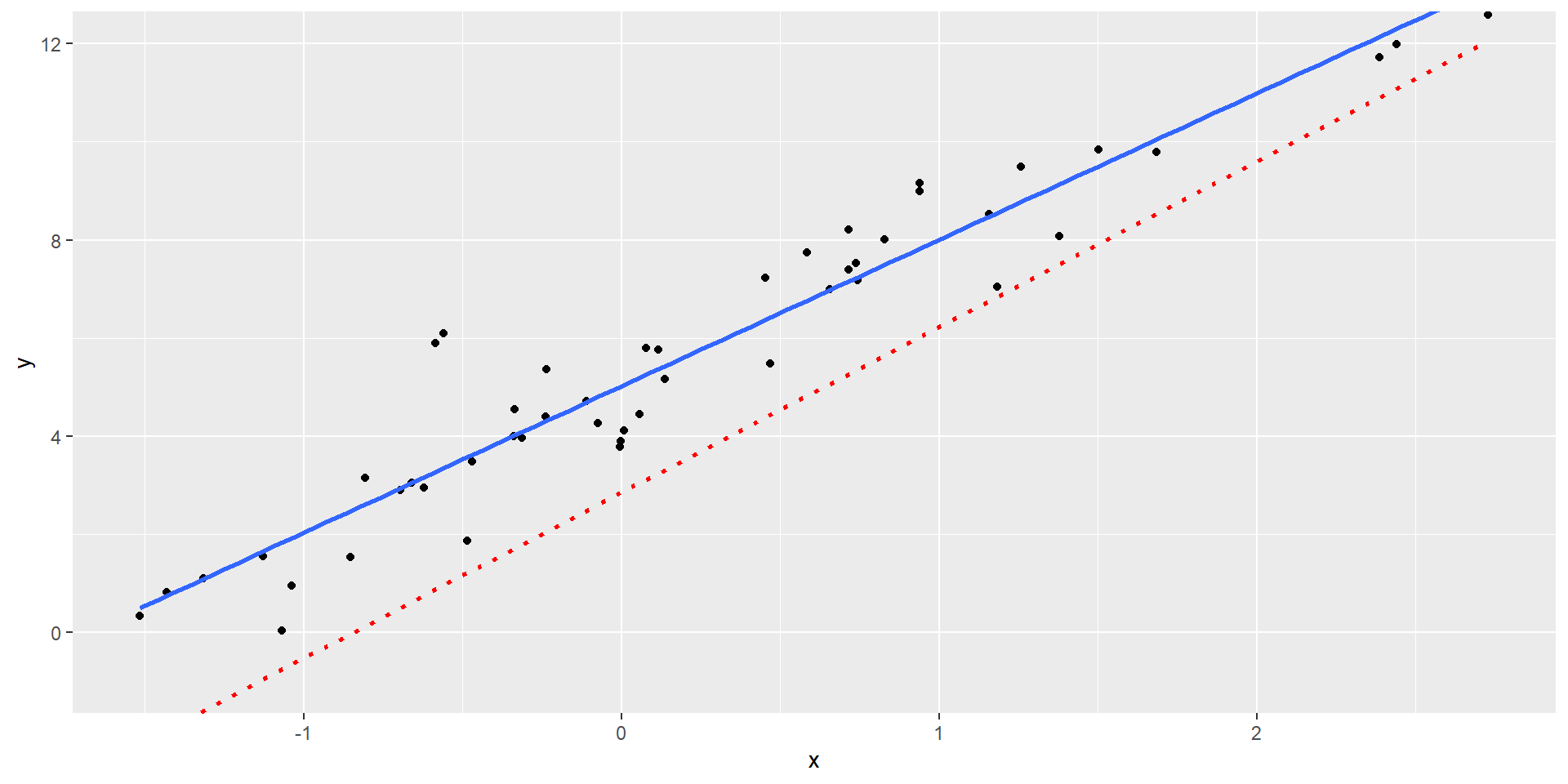

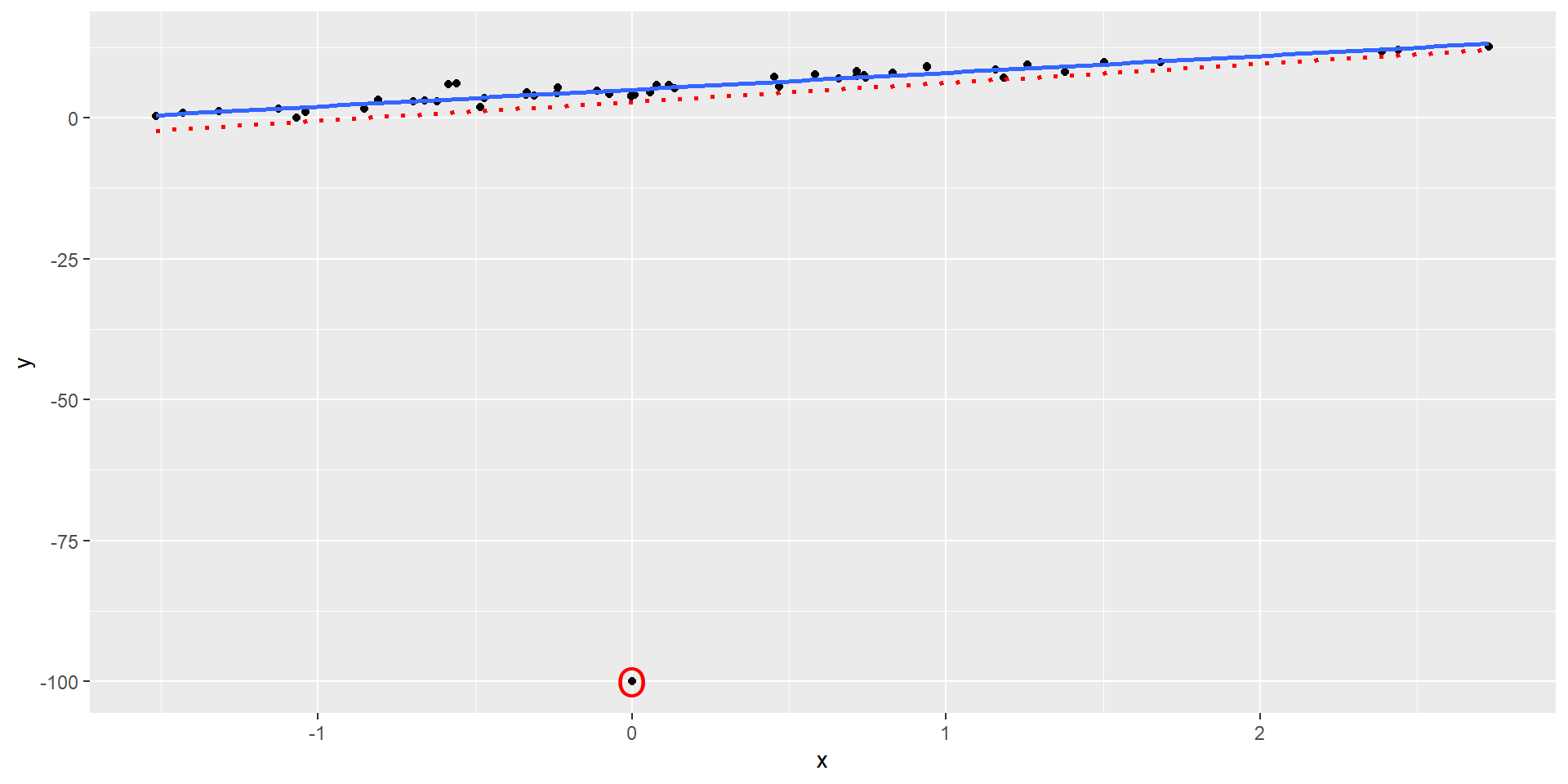

Low Leverage, High Influence

Low Leverage, High Influence

Application exercise

📋 AE-09: Outliers
